FUEL FILTER CARTRIDGE

Back to Filter Finder

Code: F40-0091-HOL
Type: Fuel
Stock: In Stock

£17.65 exc. VAT

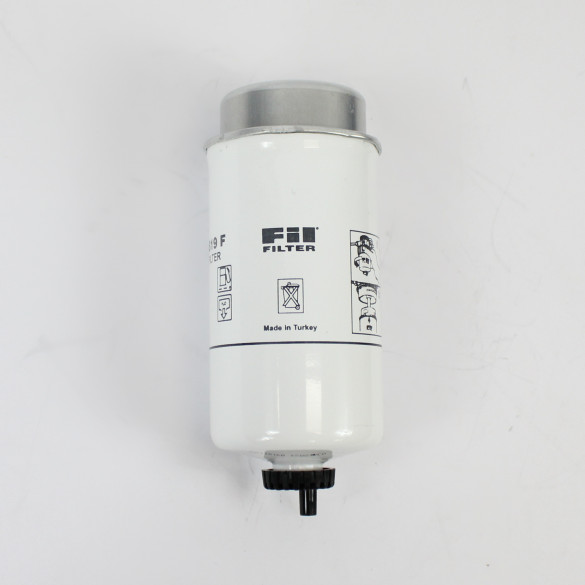

Heavy duty Fuel Filter Cartridge for construction machinery.

Thread size 3/8-16 UNF
Overall length 197mm
Outer diameter 79mm
Inner diameter 22mm

Available for same day dispatch, next day delivery across the UK.

Not what you’re looking for? Find the filters and filter kits you need using the Holm Filter Finder.

You may also speak with one of our knowledgeable filter experts about replacement filters. Just contact Holm on 01403 914400, info@holmfilters.com or fill out our contact form.

Type	Fuel
I.D (mm)	22
O.D (mm)	79
Thread size	3/8-16 UNF
Overall Length (mm)	197

JCB	JS130 Excavators (with JCB Tier 4 engine) JS130LC T4 Excavators (with JCB engine, up to June 2016) JS130LC T4 Excavators (with JCB engine from June 2016 onwards) JS175W Excavators (with JCB 448TA4I-129E2 engine from 2016 onwards) JS131 LC Excavators (with Tier 4i engine) JS220LC T4 Excavators (with JCB T4 engine) G116QS Generators (JCB Engine) G115QS Generator (Engine) G65QS (JCB 444 G-TC-56) G115QS (JCB 444 G-TCA-100) G66QS Generator (Engine) G125RS Generator (Engine) G140QS Generator (Engine)
BOMAG	BW 138 AD-5 (with Kubota V2403 engine, from 2016 onwards) BW 177 DH-5 (with Kubota V3307 engine) BW 135 AD-5 (with Kubota engine, S/N from 101650371001 to 101650481062) BW 174 AP-4/4i/AM (BW 174 AP-4/4i/AM Rollers) BW 120 AD-5 (with Kubota D1806-CR T4F engine) BW 120 AD-5 (with Kubota D1803 T4F engine) BF300P-2 (BF300P-2 Asphalt Pavers) BF300 C2 (BF300 C2 Tractors) BW 100 AD-5_T4F TE (with S/N 101880511001-101880519999) BW 11 RH-5 (with S/N 101538701001-101538709999) BW 11 RH-5 (with S/N 101538761001-101538751097) BW 11 RH-5 Tier Ivf (with S/N 861538721001-861538729999) BW 120 AC-5 (Tier 4 F) (with S/N 101880361001-101880361047) BW 120 AC-5 (Tier 4 F) (with S/N 101880361048-101880369999) BW 120 AC-5_T4F Stage V (with S/N 101880591001-101880591017) BW 120 AD-5_T4F TE (with S/N 101880501001-101880509999) BW 124 DH-5 (with S/N 101587211001-101587211015) BW 124 DH-5 (with S/N 101587261001-101587261096) BW 124 DH-5 (with S/N 861586551001-861586559999) BW 124 DH-5 (with S/N 861586571001-861586579999) BW 124 PDH-5 (with S/N 101586851001-101586859999) BW 124 PDH-5 (with S/N 101587221001-101587221028) BW 124 PDH-5 (with S/N 101587271001-101587271072) BW 124 PDH-5 (with S/N 861586561001-861586569999) BW 124 PDH-5 (with S/N 861586581001-861586589999) BW 135 AD-5 (Tier 4 F) (with S/N 101650361001-101650351014) BW 135 AD-5 (Tier 4 F) (with S/N 101650361015-101650359999) BW 138 AC-5 (with S/N 101650441001-101650449999) BW 138 AC-5 (with S/N 101650471001-101650471023) BW 138 AC-5 (Tier 4 f) (with S/N 101650351001-101650351086) BW 138 AC-5 (Tier 4 f) (with S/N 101650351087-101650359999) BW 138 AD-5 (Tier 4 F) (with S/N 101650341001-101650341209) BW 138 AD-5 (Tier 4 F) (with S/N 101650341210-101650349999) BW 141 AD-5 (with S/N 101921001001-101921009999) BW 141 AD-5 (with S/N 101921651001-101921651058) BW 141 AD-5 TE (with S/N 101921601001-101921609999) BW 145 D-5 (with S/N 101586541001-101586549999) BW 145 D-5 (with S/N 101587051001-101587051015) BW 145 DH-5 (with S/N 101586011001-101586019999) BW 145 DH-5 (with S/N 101587071001-101587071003) BW 145 PDH-5 (with S/N 101586021001-101586029999) BW 145 PDH-5 (with S/N 101587081001-101587081022) BW 151 AC-5 (with S/N 101921061001-101920521001) BW 151 AC-5 (with S/N 101921691001-101921691011) BW 151 AC-5 TE (with S/N 101921641001-101921649999) BW 151 AD-5 (with S/N 101921011001-101921019999) BW 151 AD-5 (with S/N 101921661001-101921661022) BW 151 AD-5 AM (with S/N 101921031001-101921039999) BW 151 AD-5 AM (with S/N 101921681001-101921681006) BW 151 AD-5 AM TE (with S/N 101921631001-101921639999) BW 151 AD-5 TE (with S/N 101921611001-101921619999) BW 154 ACP-4 (with S/N 101870671001-101870679999) BW 154 ACP-4 AM (with S/N 101870661001-101870669999) BW 154 ACP-4i AM (with S/N 101870661001-101870669999) BW 154 ACP-4i AM TE (with S/N 101870071001-101870079999) BW 154 ACP-4i TE (with S/N 101870081001-101870089999) BW 154 ACP-4v (with S/N 101870871001-101870871006) BW 154 ACP-4v AM (with S/N 101870861001-101870861024) BW 154 AP-4 AM (with S/N 101870841001-101870841114) BW 154 AP-4i (with S/N 101870651001-101870659999) BW 154 AP-4i AM (with S/N 101870641001-101870649999) BW 154 AP-4i AM TE (with S/N 101870051001-101870059999) BW 154 AP-4i TE (with S/N 101870061001-101870069999) BW 154 AP-4v (with S/N 101870851001-101870851023) BW 154 APO-4i (with S/N 101870161001-101870169999) BW 154 APO-4i TE (with S/N 101870091001-101870099999) BW 154 APO-4v (with S/N 101870881001-101870881004) BW 161 AC - 5 PB (with S/N 101921461001-101921469999) BW 161 AD - 5 AM PB (with S/N 101921431001-101921431001) BW 161 AD - 5 PB (with S/N 101921401001-101921409999) BW 161 AD-5 (with S/N 101921101001-101921109999) BW 161 AD-5 AM (with S/N 101921131001-101921139999) BW 161 ADO - 5 Tier 3B PreBuy (with S/N 101921471001-101921479999) BW 161 ADO-5 (with S/N 101921301001-101921309999) BW 174 ACP-4i AM EU-FLEX (with S/N 101870561001-101870569999) BW 174 AP-4i (with S/N 101870761001-101870769999) BW 174 AP-4i AM (with S/N 101870751001-101870759999) BW 174 AP-4i AM_EU-Flex (with S/N 101870921001-101870929999) BW 174 AP-4i AM_PB (with S/N 101870901001-101870909999) BW 174 AP-4i EU-Flex (with S/N 101870931001-101870939999) BW 174 AP-4i_PB (with S/N 101870911001-101870919999) BW 174 APO-4i (with S/N 101870171001-101870179999) BW 177 BVC-5 (with S/N 101586061001-101586069999) BW 177 BVC-5 (with S/N 101587111001-101587111038) BW 177 BVC-5 (with S/N 101587111039-101587111060) BW 177 BVC-5 (with S/N 101587111072-101587119999) BW 177 D-5 (with S/N 101586491001-101586499999) BW 177 D-5 (with S/N 101586801001-101586809999) BW 177 D-5 (with S/N 101587061001-101587061287) BW 177 D-5 (with S/N 101587061288-101587061395) BW 177 D-5 (with S/N 101587061463-101587069999) BW 177 D-5 (with S/N 101587381001-101587381006) BW 177 PDH-5 (with S/N 101586051001-101586059999) BW 177 PDH-5 (with S/N 101587101001-101587101046) BW 177 PDH-5 (with S/N 101587101047-101587101056) BW 177 PDH-5 (with S/N 101587101087-101587109999) BW 190 AD - 5 PB (with S/N 101921491001-101921499999) BW 190 AD-5 (with S/N 101921121001-101921129999) BW 190 ADO - 5 PB (with S/N 101921491001-101921499999) BW 190 ADO-5 (with S/N 101921311001-101921319999) BW 197 DH-5 (with S/N 101586071001-101586079999) BW 202 AD-5 (with S/N 101921111001-101921119999) BW 202 AD - 5 PB (with S/N 101921481001-101921489999) BW 202 ADO-5 (with S/N 101921321001-101921329999) BW 202 ADO-5 Tier 3 PB (with S/N 101921481001-101921489999) BW 202 AD-5 (with S/N 101921411001-101921419999) BW 161 AC - 5 (with S/N 101921161001-101921169999) BW 100 AC-5 (with S/N 101880361001-101880361035) BW 100 AC-5 (with S/N 101880361036-101880369999) BW 100 AC-5 (with S/N 101880531001-101880539999) BW 100 AC-5 (with S/N 101880581001-101880581012) BW 100 AD-5 (with S/N 101880341001-101880341017) BW 100 AD-5 (with S/N 101880341018-101880349999) BW 100 AD-5 (with S/N 101880561001-101880561021) BW 120 AC-5 (with S/N 101880521001-101880529999) BW 120 AD-5 (with S/N 101880331001-101880331189) BW 120 AD-5 (with S/N 101880331190-101880339999) BW 120 AD-5 (with S/N 101880571001-101880571068) BW 135 AD-5 (with S/N 101650451001-101650459999) BW 135 AD-5 (with S/N 101650481001-101650481011) BW 138 AD-5 (with S/N 101650431001-101650439999) BW 138 AD-5 (with S/N 101650461001-101650461092) BW 154 AD-5 (with S/N 101921671036-101921679999) BW 154 AD-5 (with S/N 101921021001-101921029999) BW 154 AD-5 (with S/N 101921671001-101921671013) BW 177 DH-5 (with S/N 101586041001-101586049999) BW 177 DH-5 (with S/N 101586811001-101586819999) BW 177 DH-5 (with S/N 101587091001-101587091086) BW 177 DH-5 (with S/N 101587091087-101587091103) BW 177 DH-5 (with S/N 101587091151-101587099999)
DOOSAN-INGERSOLL RAND	9/110 (2007> John Deere Engine) 7/170 (John Deere Engine 6068 2010 >) 10/125&14/115 (SN > 702800) 7/120 (Engine)
DOOSAN-DAEWOO-DEVELON	G60 STTA (2016on John Deere 4045HFG81A-B)
JOHN DEERE	6530 Tractors (6530 Tractors) 6630 Tractors (with 6068 HL280-HL282 engine)
CLAAS	Arien 530 (2014> From s/n 3400050- 3499999)
ATLAS COPCO	XAVS 186 Compressors (with John Deere 4045HAC05/HFC04 engine (2016))
